Leadsun Global

Seaford North Reserve Car Park


City of Frankston

Lighting Compliance

P11C & P12

Project Overview

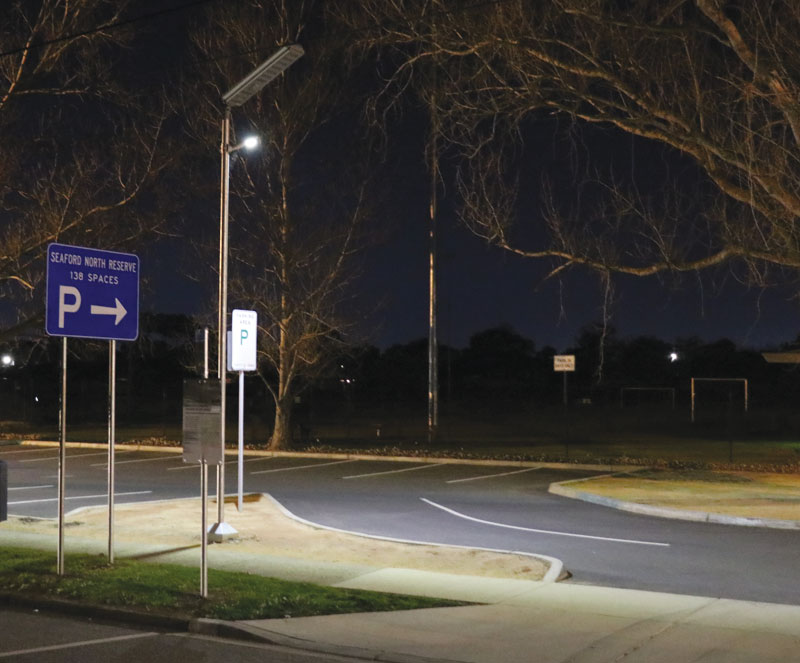

The City of Frankston responded to their communities needs by providing a much needed solar car park lighting solution for a busy car park at the Seaford North Reserve. The car park is used by the local sporting clubs, commuters using the Seaford train station and late evening dog walkers.

Leadsun Solution

  • 16 x AE3C Solar Engines
  • 1 x AE6 Solar Engine
  • 18 LSRM T3 Type Luminaires
  • Solar Module Size = 80W PV
  • LED Output = 1500Lm
  • P Category Lighting Compliance = P11C & P12
  • Adaptive lighting control automatically dims lights to 30% during inactivity
  • Lithium-ion batteries provides 10+ years maintenance-free life span

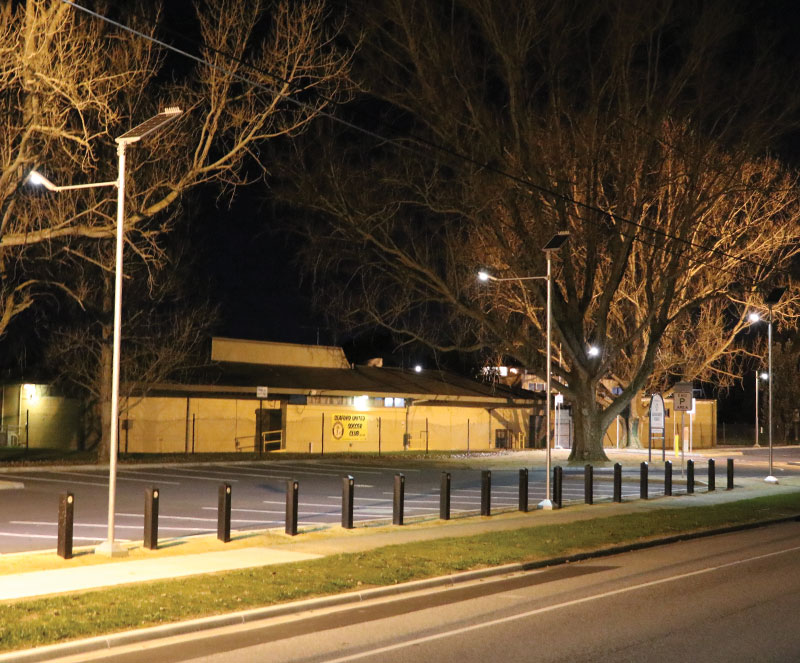

This lighting design provided some challenges to overcome as parts of the car park are heavily tree-lined with major tree roots. As our solution requires no underground cabling the tree roots were protected, however to provide complaint solar car park lighting to some disabled car spaces under trees, we installed a AE6 Master-Slave solar engine in a direct sun lit position, which powered the lights under trees. Further to this there were some special bracketing requirements with extensive outreaches to ensure P11C & P12 lighting compliance was met.

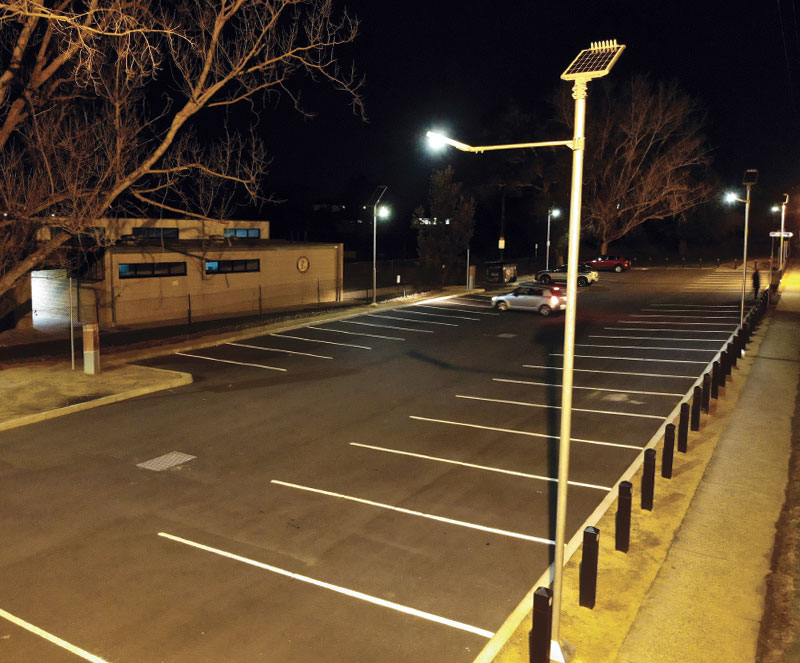

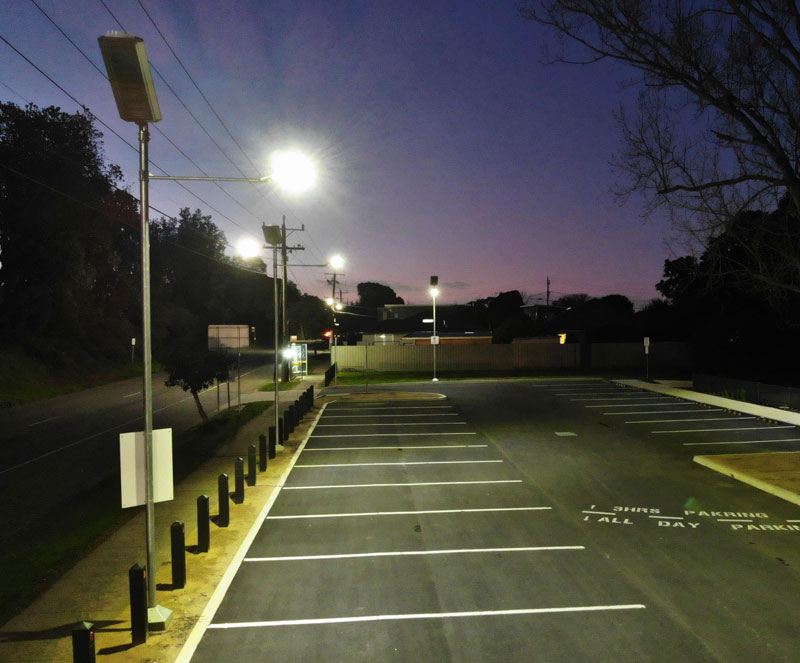

The final result shows a modern looking system that demonstrates smooth and consistent lighting throughout the car park with all compliance lighting met. This public space also has a much more inviting feel about it which allows the connected reserve to be safely accessed for longer periods of the day for a variety of people.
