Leadsun Global

Coates Hire


Coates Hire

Lighting Compliance

AS/NZS 1158.3.1 P3

Project Overview

Coates Hire required a transportable smart solar lighting system to offer customers who require temporary lighting for construction sites. The equipment needed to have the ability to be used in a variety of applications and have a small foot print for flexible use in both confined and broader spaces.

A need in the construction industry for a lighting solution was identified by Coates Hire that eliminated the expense of fuel purchases, pulluting fumes and noise emitted from generators.

Leadsun Solution

  • 10 Units of Complete Smart Solar Lighting Systems
  • Solar Module Size = 260W
  • LED Output = 30W (4500lm)
  • Lithium-ion Batteries Providng Longevity and Reliability
  • Concrete Bases = 2 × 1.5 ton (1300 × 1300 × 400)
  • EZY winch poles (medium Duty) at 6.5 height

The smart solar lighting systems are consist of 260W solar engines combined with large 30W (4500lm) Cree LED lamps which will provide full illumination from dusk to dawn.

The poles are heavy and lowerable. The winch provided offers the user to fastly transport, install and uninstall without the need to use a raised platform. The assembly and disassembly process can be carried out as a 2-3 person operation.

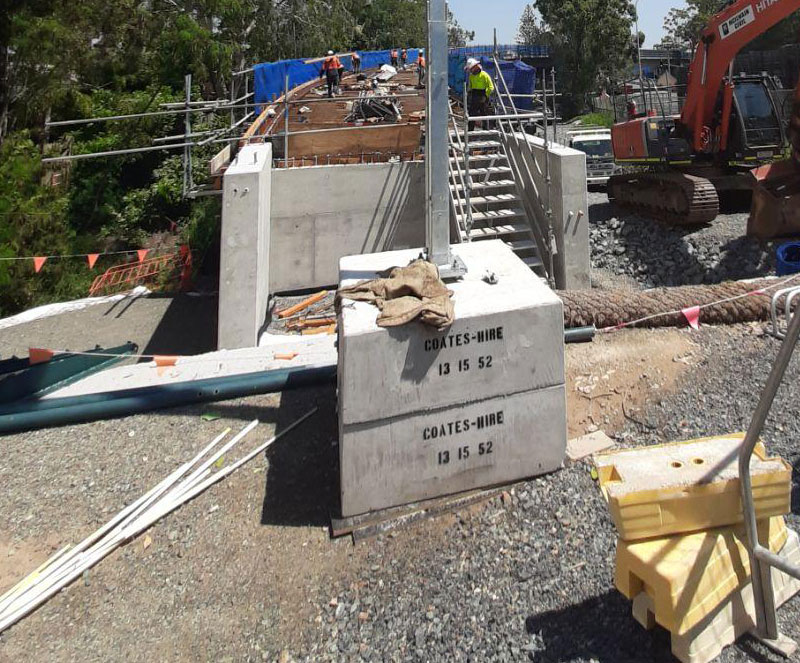

At the request of the customer, Leadsun developed a two piece concrete block to support the smart solar lighting system. With a unique design allowing fork lift loading and unloading, the solar light system is easy to transport.

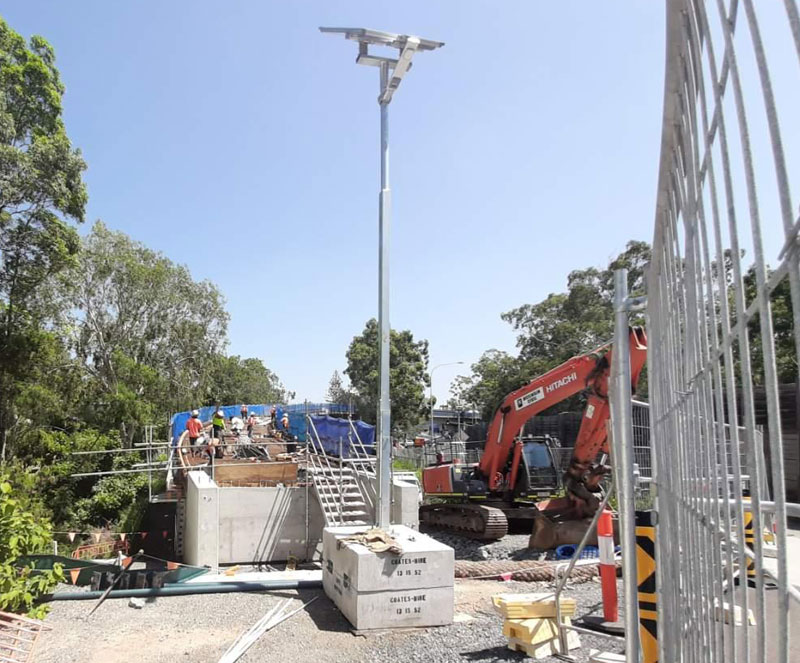

With the sun shining in Brisbane, it was a perfect opportunity to visit a customer and gather feedback on our new 30w solar street light. The project has limited space and is situated in a residential area, so providing a product with a small footprint, zero emissions and zero decibel rating was crucial to meeting specific requirements.

Tell us how we can light up your next project
